Industrial Contactors and Relays

Industrial Contactors and Relays are electrically operated switching devices used to control, protect, and automate electrical circuits in industrial settings. While both perform switching operations using an electromagnetic coil, they serve distinct purposes based on load capacity, application, and protective functions.

1. Heavy-Duty Power Contactors

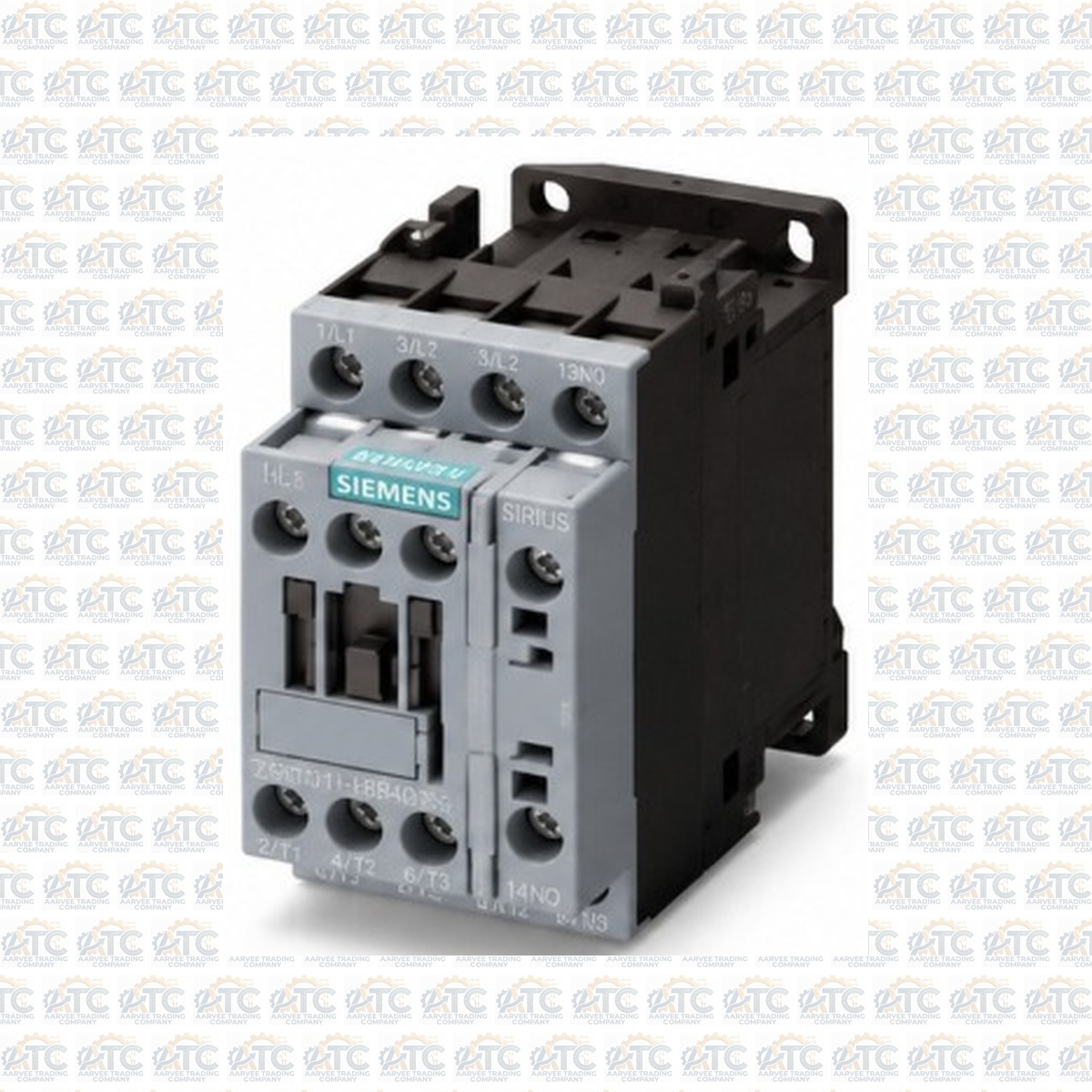

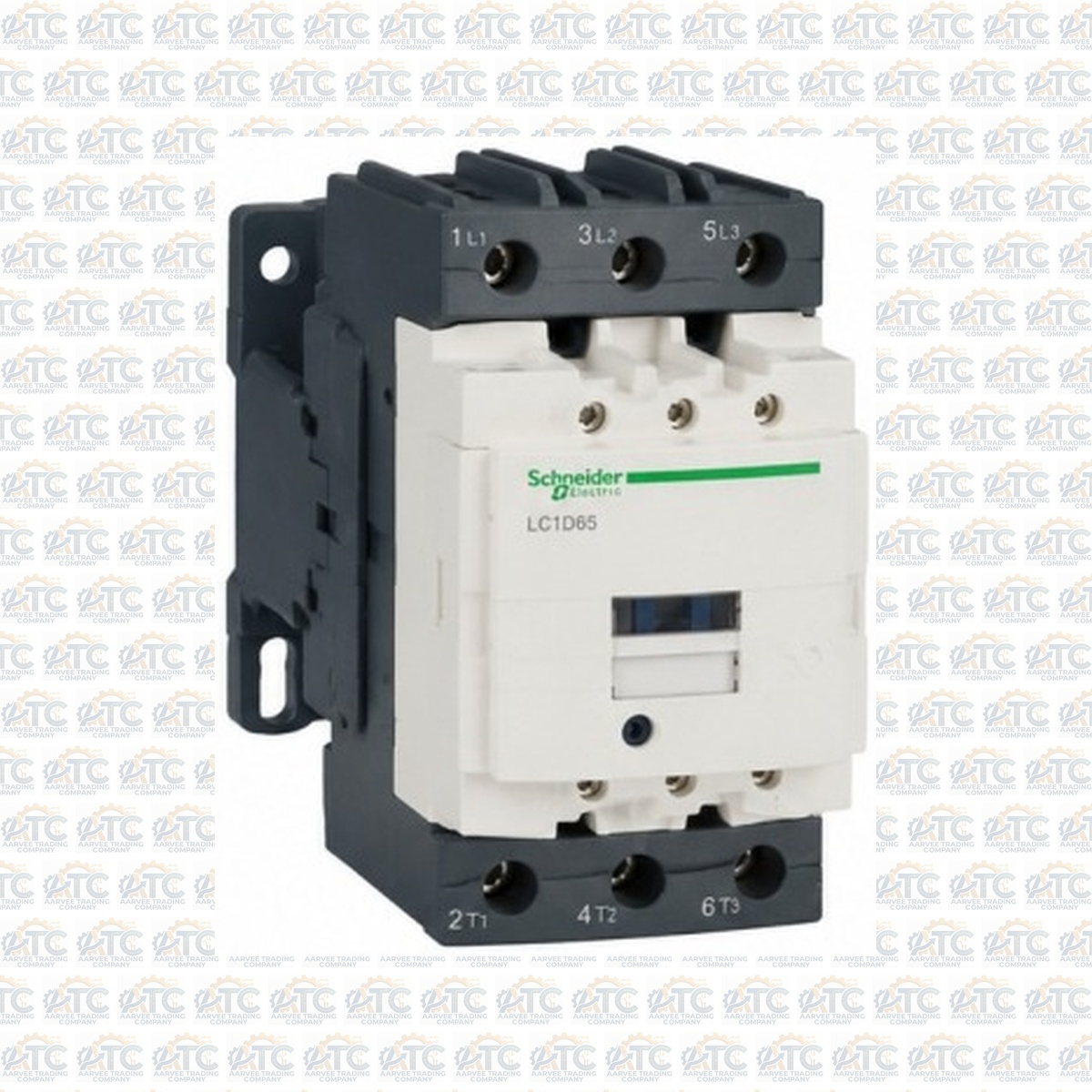

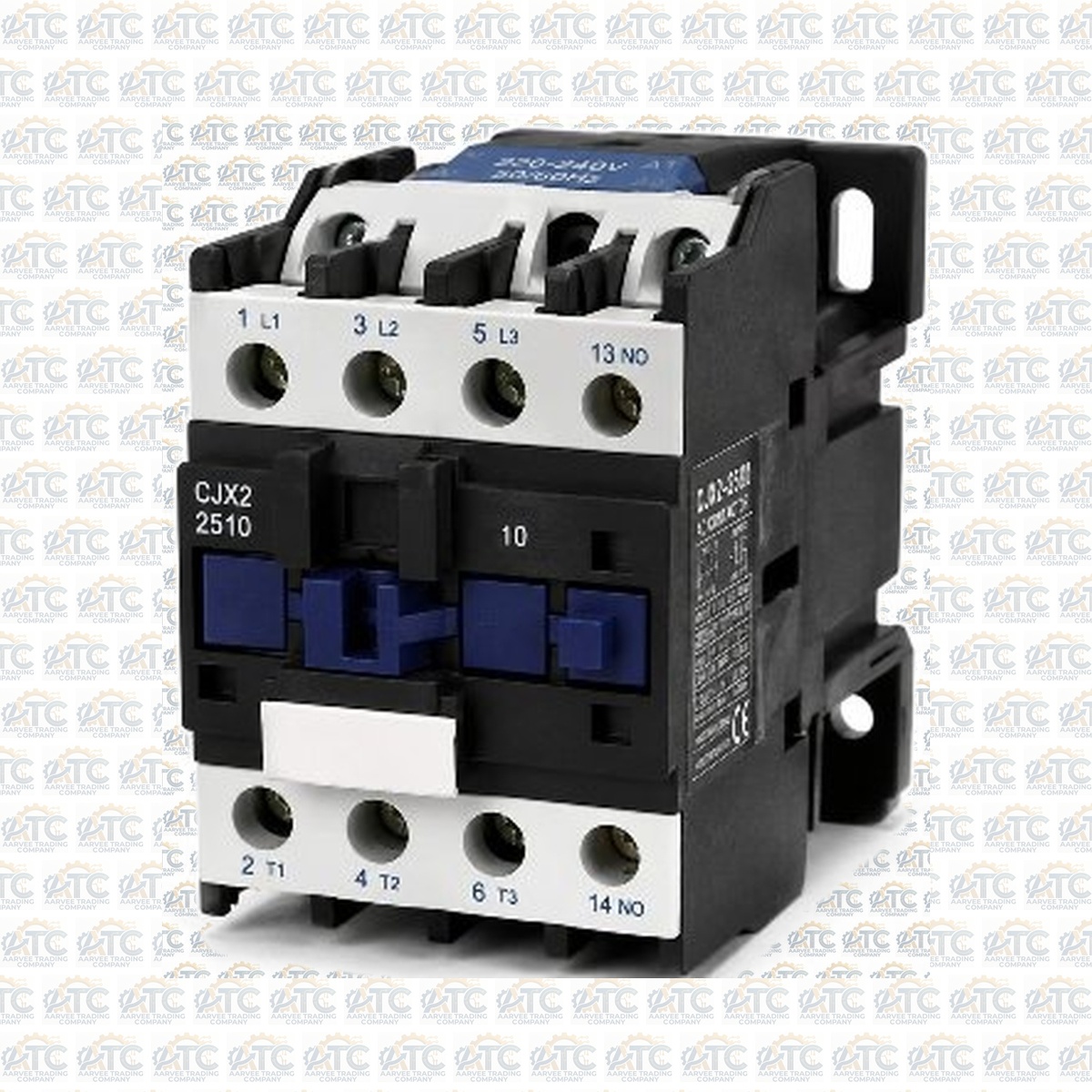

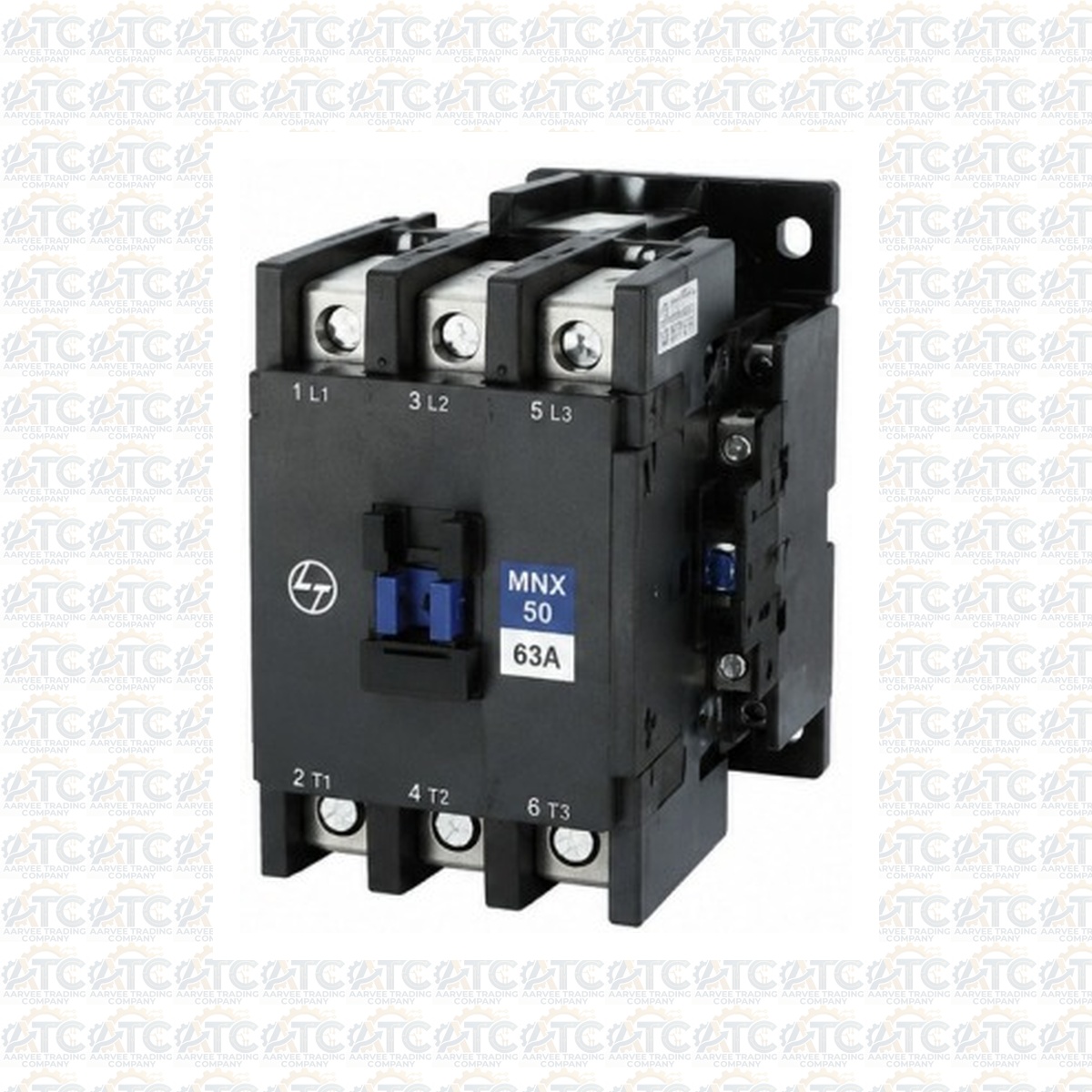

Industrial Contactors are high-capacity switching devices designed to connect and interrupt high-current power circuits safely. Unlike standard relays, contactors are built with specialized arc-suppression mechanisms to handle heavy inductive loads.

• Primary Function: Switching high-voltage/high-current power directly to heavy electrical loads such as electric motors, heating elements, and industrial transformers.
• Key Characteristics:
  • High Current Rating: Typically rated from tens to thousands of amperes.
  • Arc Chutes: Built-in arc suppression chambers to safely extinguish electrical arcs when breaking high currents.
  • Normally Open (NO) Contacts: Designed primarily to remain open when de-energized for safety.
• Typical Applications: Motor starters, HVAC compressors, industrial lighting panels, and capacitor bank switching.

2. Control Relays (Socket Mounted)

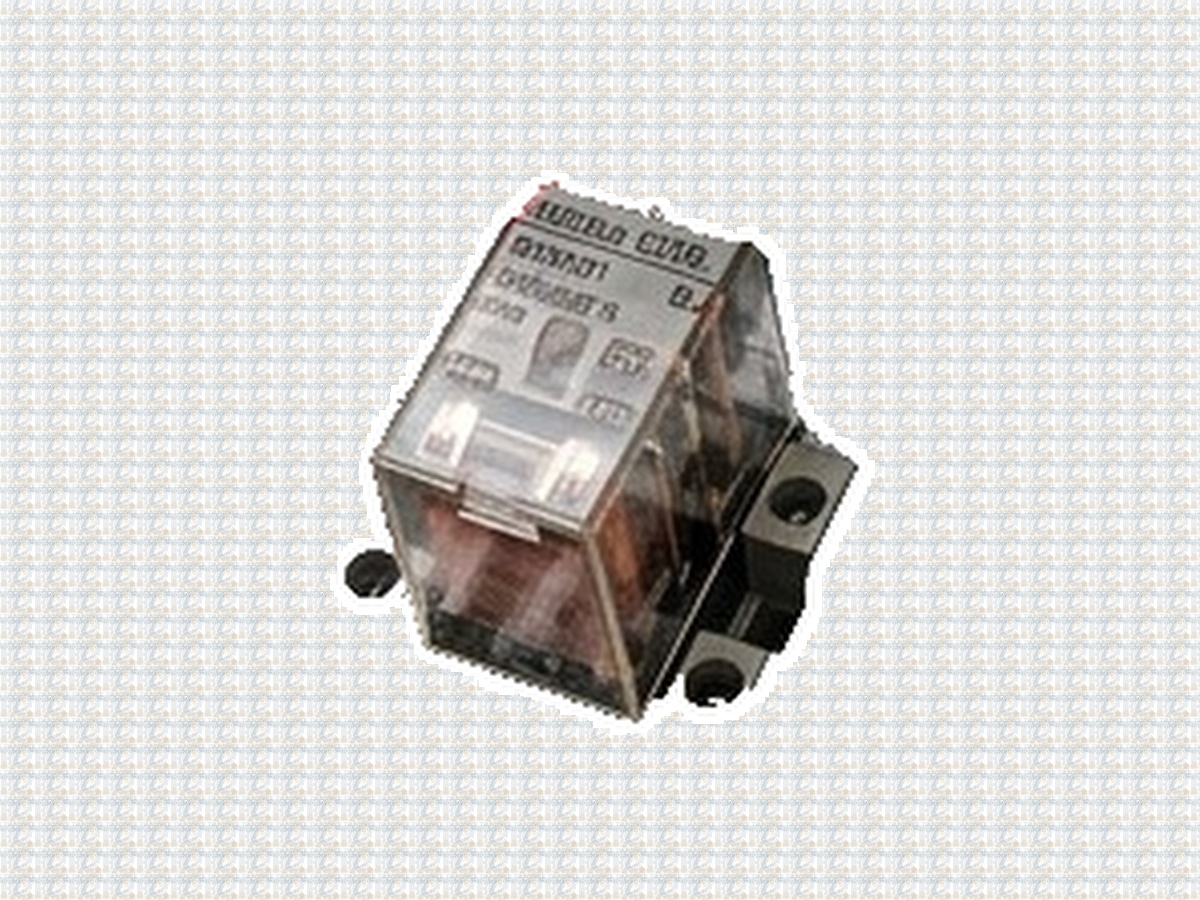

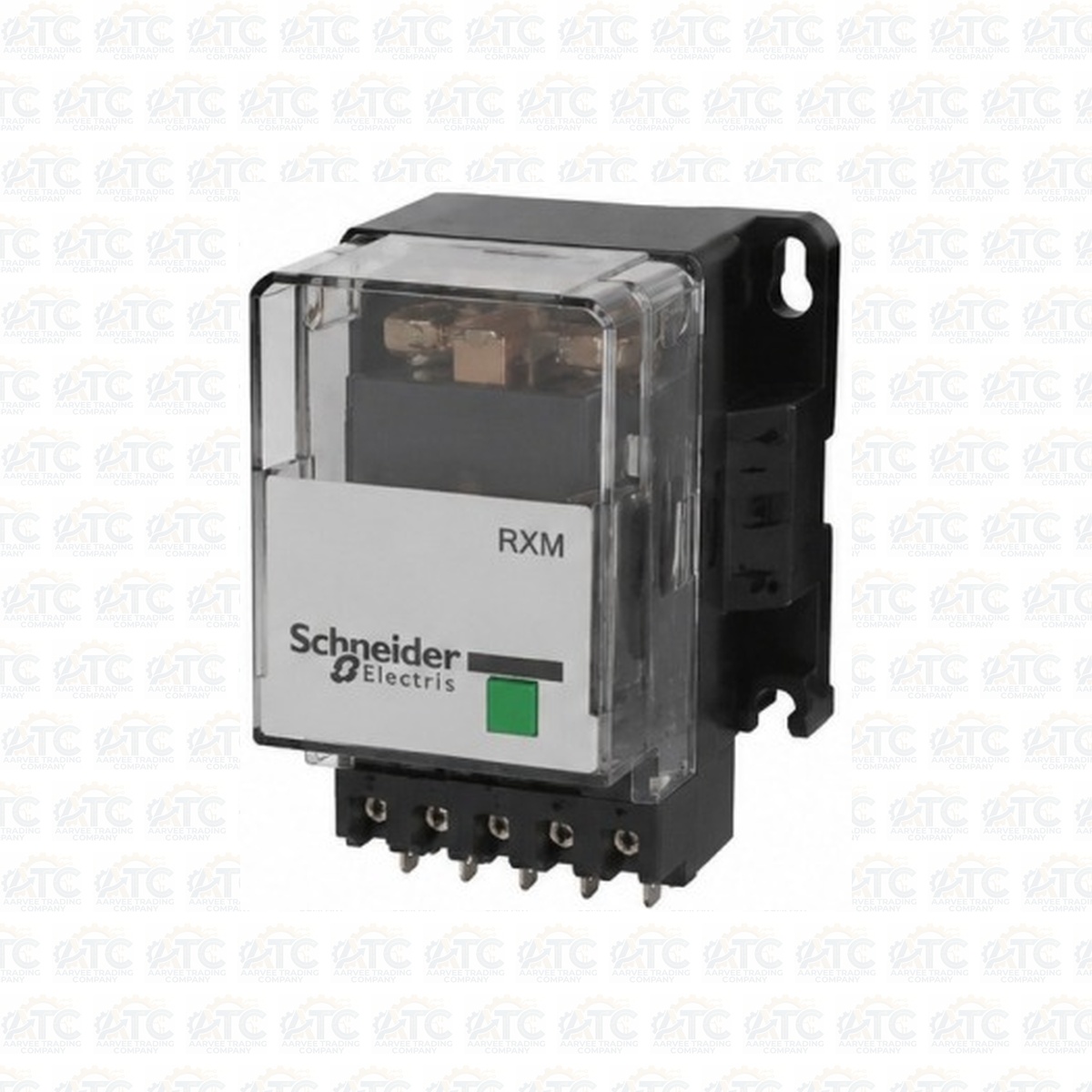

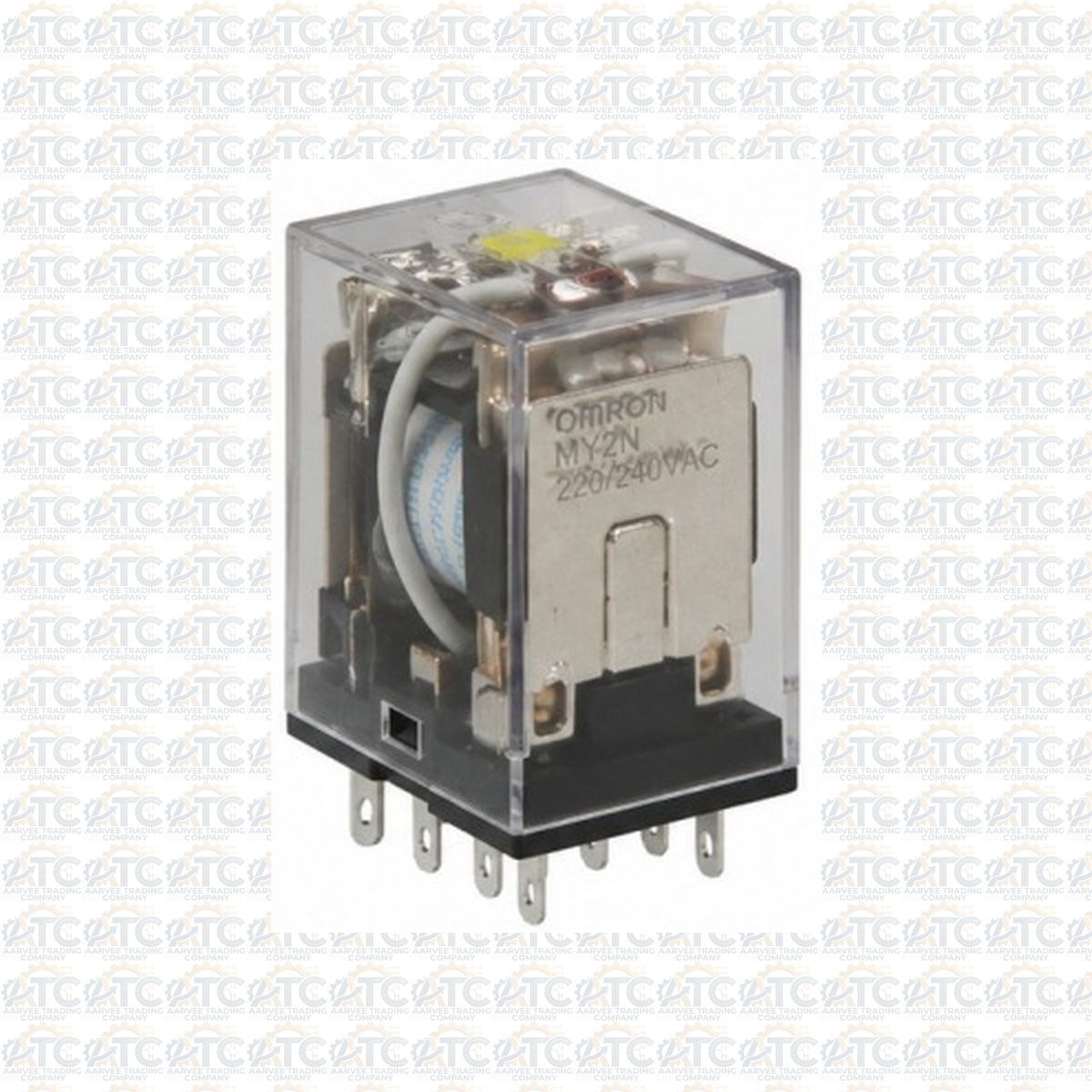

Control Relays (often plug-in or square-base relays) are lower-power switching devices used to route signals, execute logic, and isolate control circuits from main power circuits.

• Primary Function: Interfacing control devices (like pushbuttons, timers, or sensors) with other circuit components to perform sequence control and switching logic.
• Key Characteristics:
  • Socket Mountable: Quick-plug design into DIN-rail mounted sockets for easy replacement without rewiring.
  • Transparent Enclosure: Clear housing allowing quick visual inspection of the internal mechanical contacts and mechanical status indicators.
  • LED Status Indicators: Integrated visual indicators showing when the internal coil is energized.
• Typical Applications: Control panel logic, interlock systems, and signal expansion in control cabinets.

3. Thermal Overload Relays

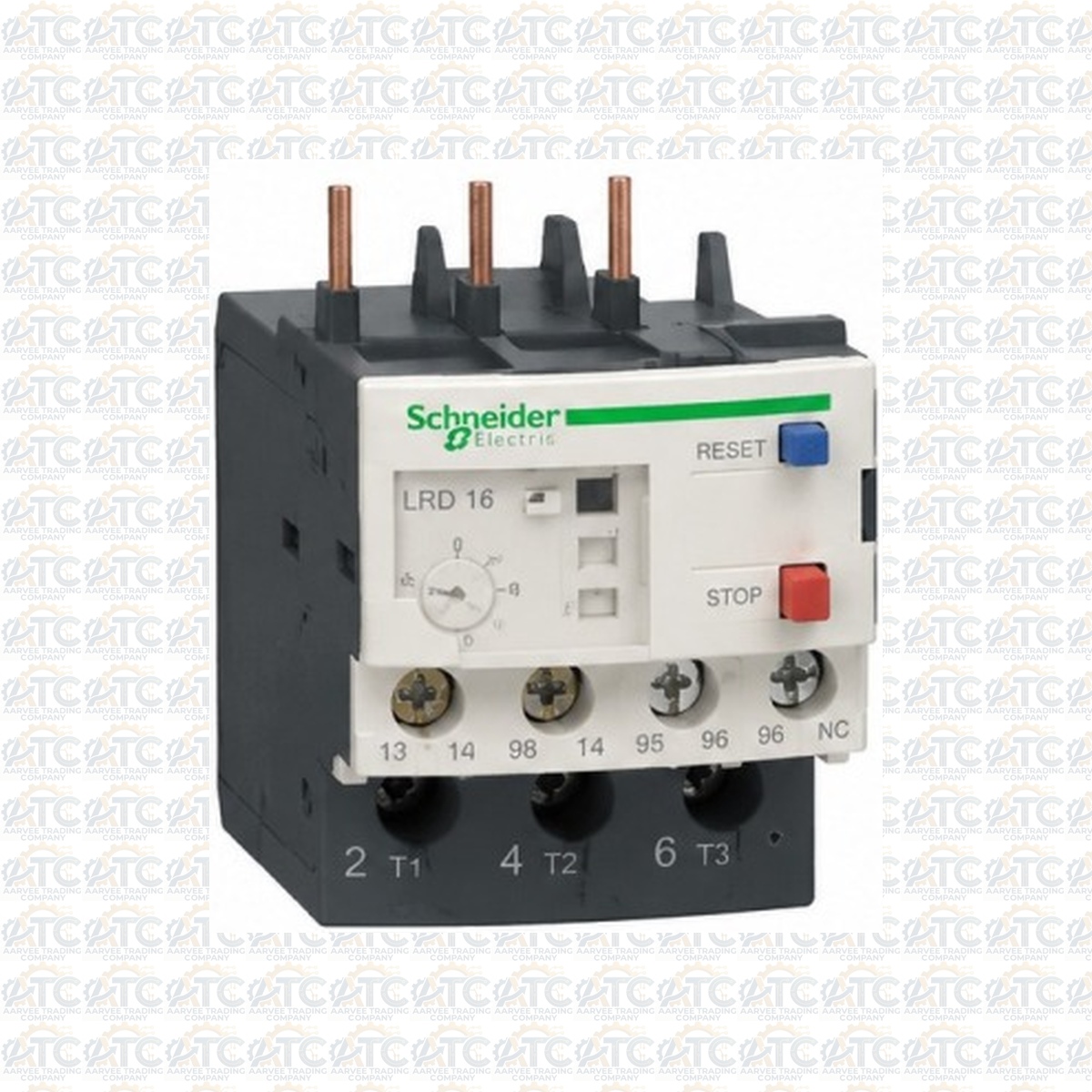

Thermal Overload Relays are protective devices specifically paired with power contactors to prevent electric motors from overheating due to sustained overcurrent conditions.

• Primary Function: Protecting motors from damage caused by prolonged overcurrent, phase imbalance, or phase loss.
• Key Characteristics:
  • Bimetallic Strips: Utilizes bimetallic elements that bend when heated by excess current, triggering a trip mechanism.
  • Adjustable Current Setting: Features a calibrated dial to set the trip threshold according to the motor's Full Load Amperes (FLA).
  • Reset Modes: Equipped with manual or automatic reset buttons and test/stop controls.
• Typical Applications: Direct-On-Line (DOL) and Star-Delta motor starters.

4. Compact Interface Relays

Interface Relays are ultra-slim, DIN-rail mounted relays designed to connect sensitive electronic controllers (such as PLCs or microcontrollers) to field devices operating at different voltage levels.

• Primary Function: Voltage translation, electrical isolation, and signal amplification between automation equipment and field instrumentation.
• Key Characteristics:
  • Galvanic Isolation: High dielectric strength protecting sensitive PLC outputs from voltage surges in field wiring.
  • Space-Saving Design: Slim width (often 6 mm to 12 mm) to maximize control panel space.
  • Integrated Terminal Blocks: Easy screw-clamp or push-in wiring terminals integrated directly into the housing.
• Typical Applications: PLC digital input/output isolation, valve actuation control, and alarm signaling.
